WTE H300  Fast Steam Thermal Decomposition System For Hospital Waste

Power consumption

< 15KW, 380V

Water consumption

Storage about 2 ton， consumption< 50 L/h

Reaction space

About 0.45m3, process rate about 300kg/h~700kg/h (depend on density of waste)

Size of waste

Size of waste <5cm3, as smaller as fast

Inlet size

Diameter about 40cm

Outlet size

Diameter about 30 cm

Fuel consumption for system warming up

Time of warming up about 1~1.5 hour，consumption about 30 L

Type of fuel for warming up

Diesel oil or fuel gas

Max. offgas

About 1200CMH

Pressure

Negative~0.1bar

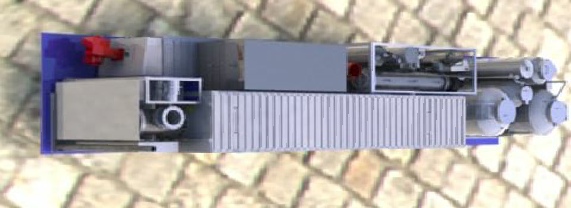

Size of system

L= 14m, W=2.3m, H=2.35m

Distillation capacity

800 CMH max

Including fuel, water, steam separator

Including pathogenic bacteria killer by steam、meet the standard of NEBB

Including Mercury, Sulfide , Chlorine removing function, and gas cleaning by activated carbon.

Including waste water treatment

Online monitor for  H2, CH4, Sulfide , Chlorine, NHx

Including Sulfide removing from oil by catalyst

Including oil purification
